Products description

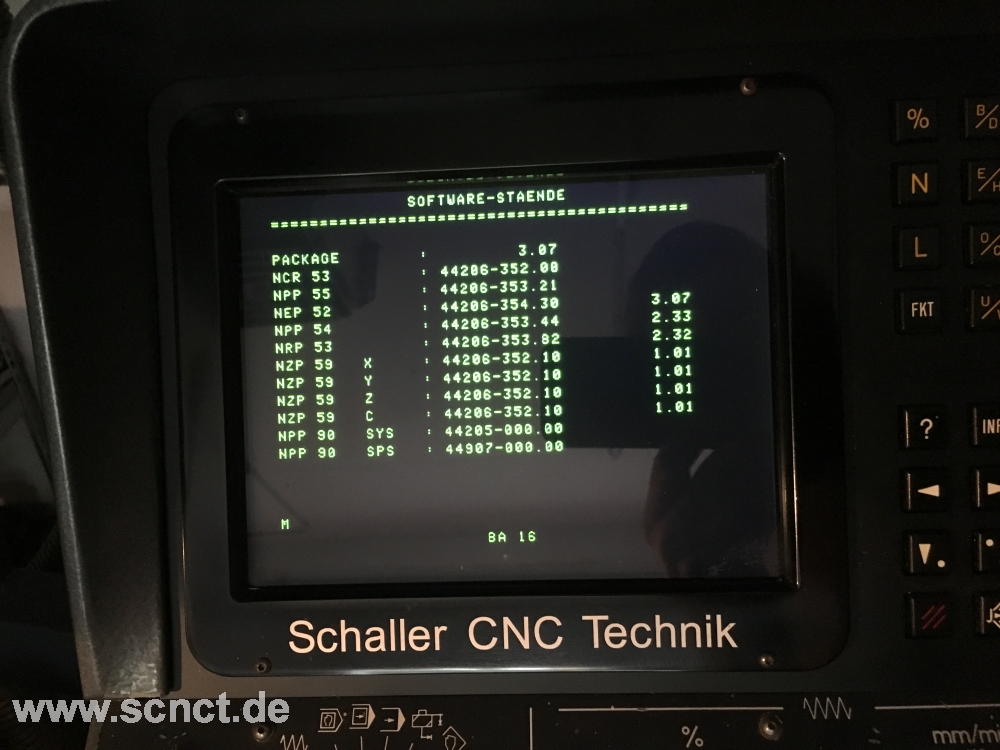

DNC Update SW Package 3.07 fits for Deckel Dialog-4 CNC Control (Conversion from NPP55 & NEP52)
With the DNC update, CNC programs of any size can be processed.
In the course of the hardware upgrade, a 25% faster processor will be installed. As a result, the geometry data is calculated significantly faster.
Data transmission at 9,600 baud works without any problems with a data cable in accordance with the Deckel specification.
The price offered is valid for CNC-controllers with SW Package 2.00 and higher!
An NEP52 card is additional required for CNC-controllers with SW Package 1.xx!
The supplied PC software requires a PC with MS-Dos or an MS-Dos partition and an on-board RS232
interface (no USB adapter). The Language for MS-DOS Software is German!
Windows software for PC is optionally available. Please inquire about this.
The appropriate cable for data transmission (PC - machine) and a galvanic isolator are also available in the online shop.
No original Part!

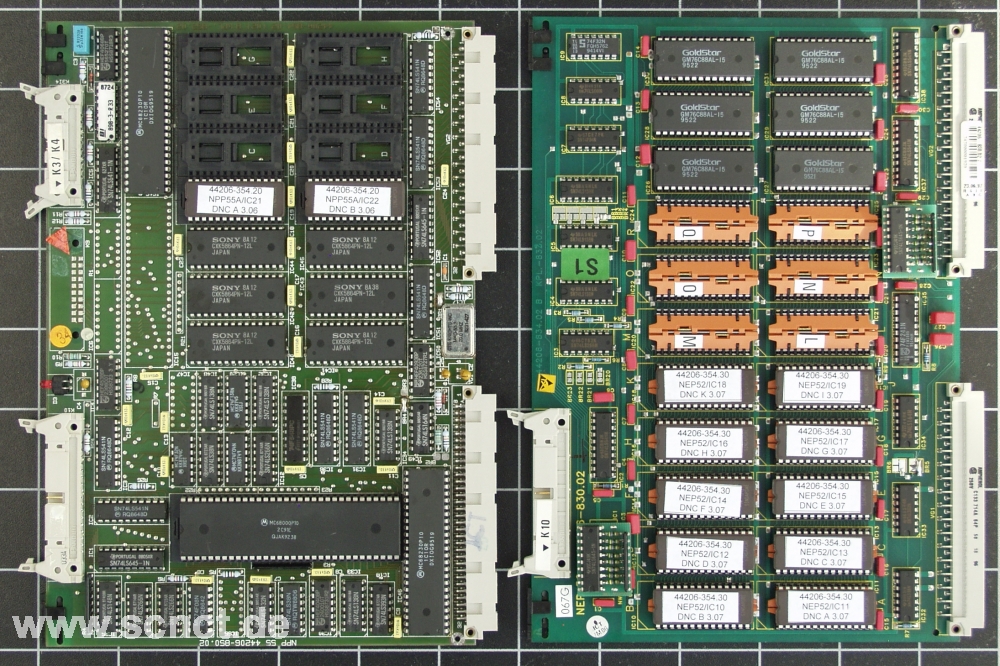

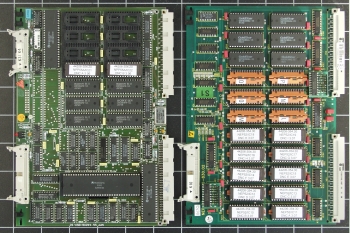

The price for the conversion of your circuit boards can be found under "Repair-price"!
Scope of delivery: Modification from your Boards, Floppy Disk with PC-Software, Manual for Software usage.
Software is principle excluded from the right of Exchange or return!
This Product was added to our catalogue on 29/07/2013.
